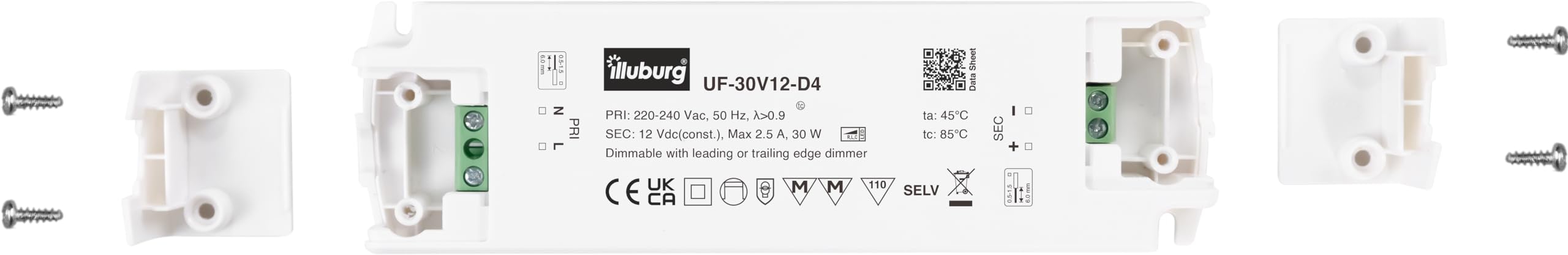

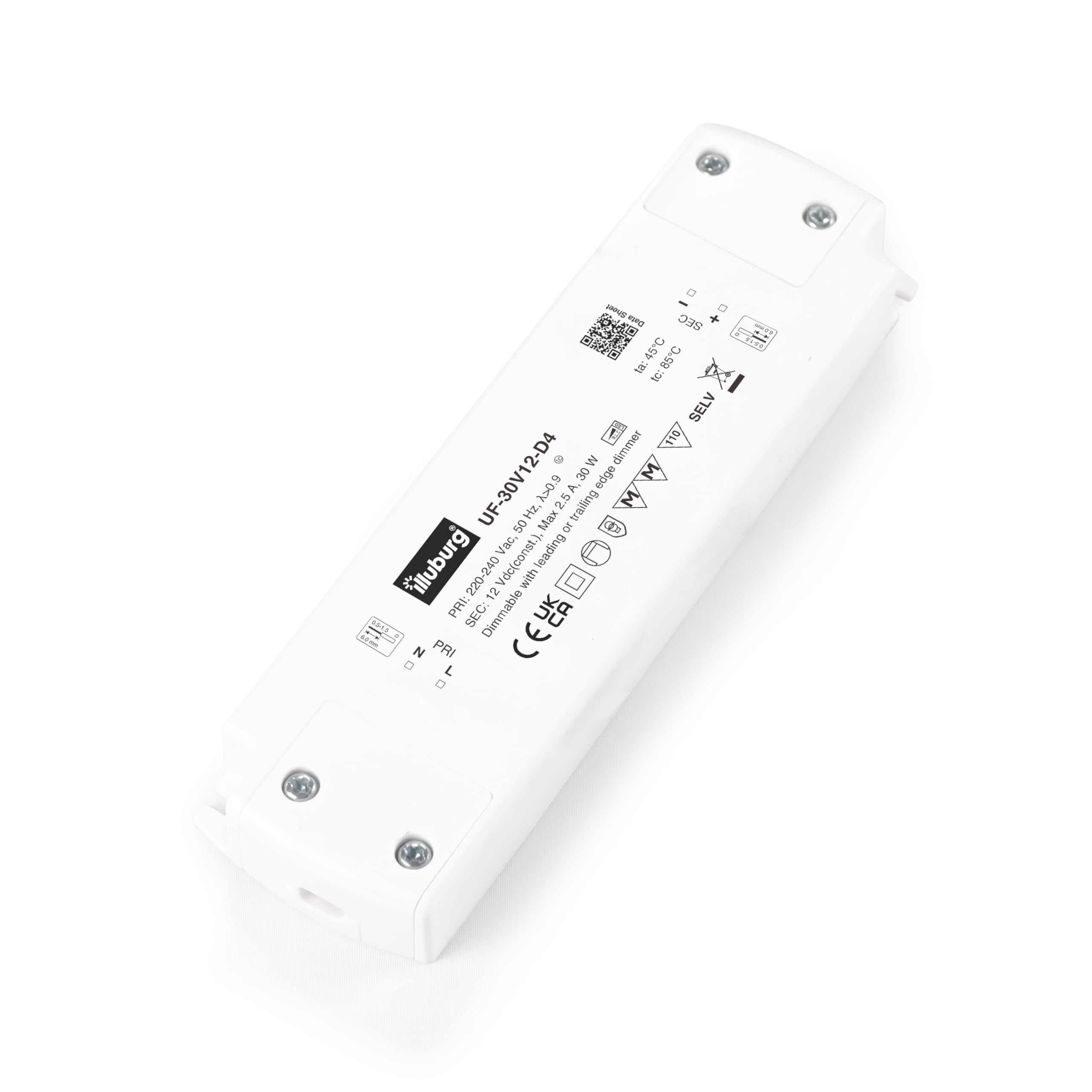

LED DRIVER UF-30V12-D4 input 220-240V (AC), output 12V (DC) constant voltage, dimmable, independent installation, connection by screw terminals.

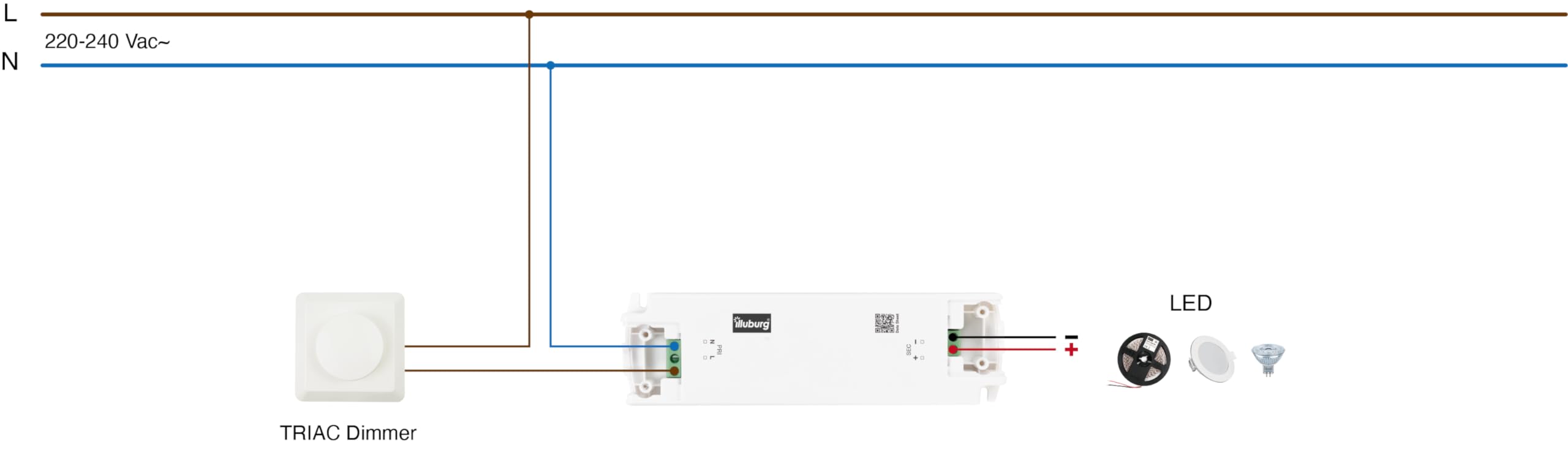

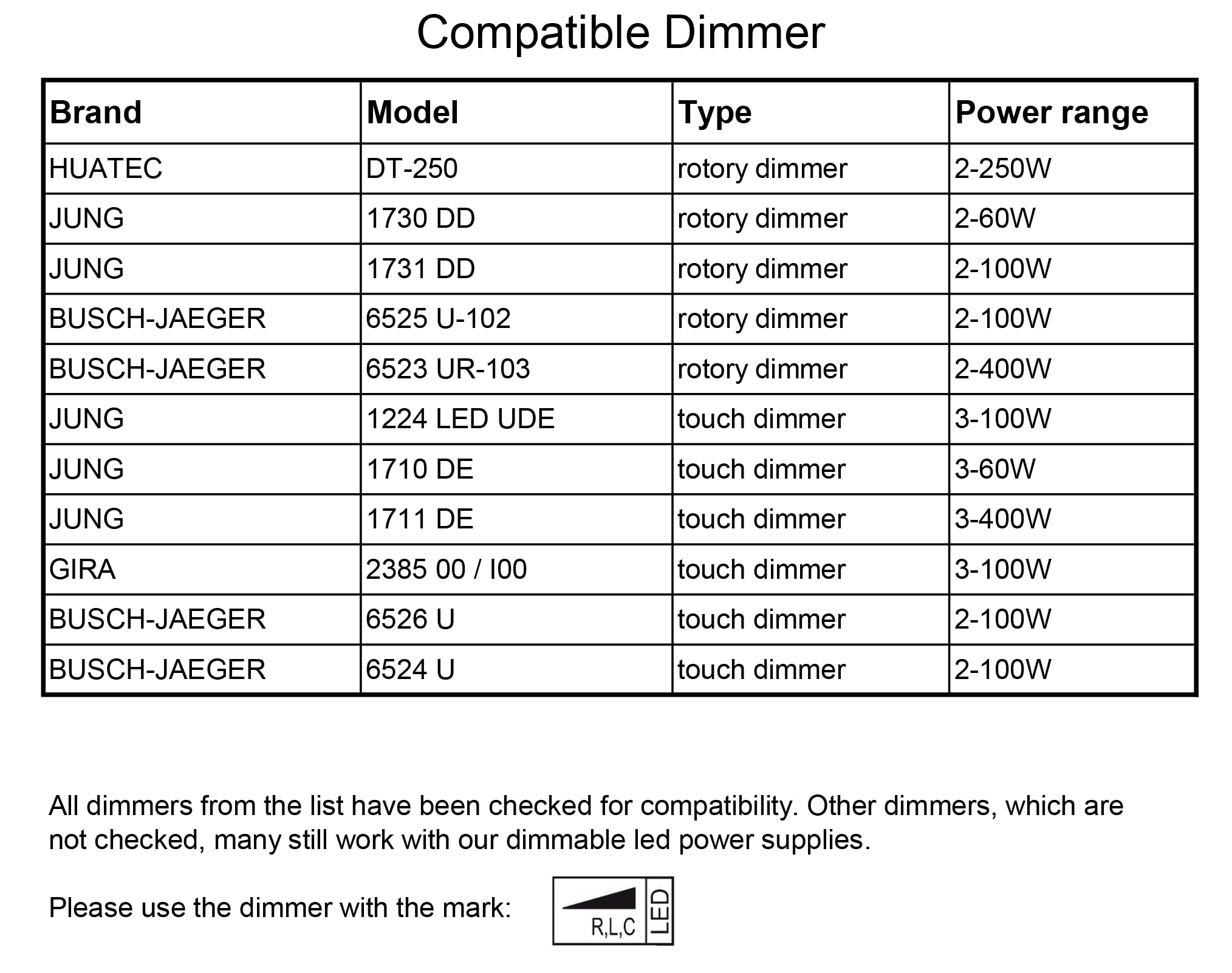

Dimmability TRIAC dimmable (phase control & -section / leading & trailing edge), dimming range 10 to 100%. Please use an "R,L,C" dimmer and see also the "Compatible Dimmer" image for more details.

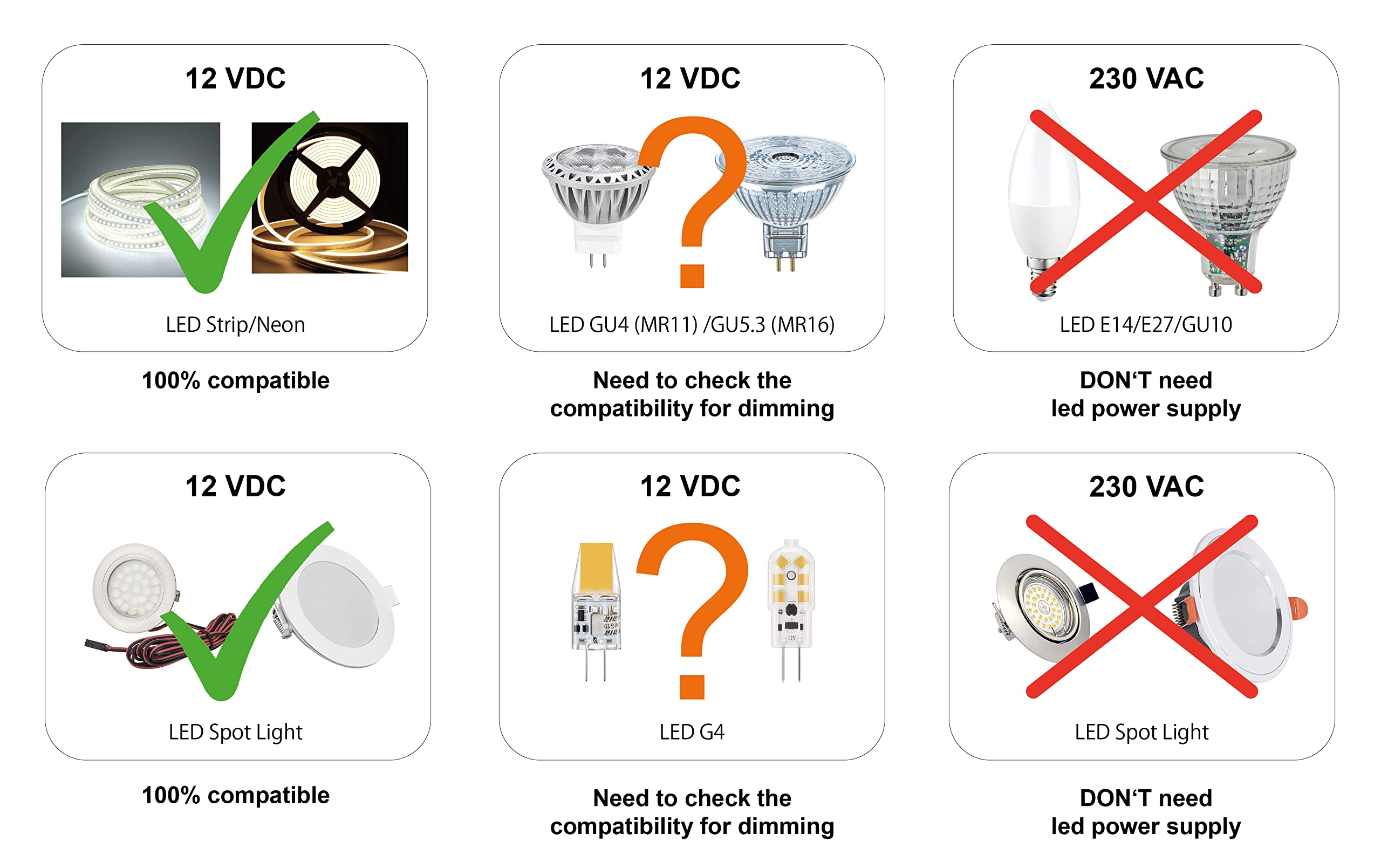

Power for LEDs (strips, lamps) from 6 W to 30 W, not suitable for lamps with GU5.3 / MR16 or G4 / MR11 socket, parallel connection possible. We recommend that the application does not exceed 85% of the rated power.

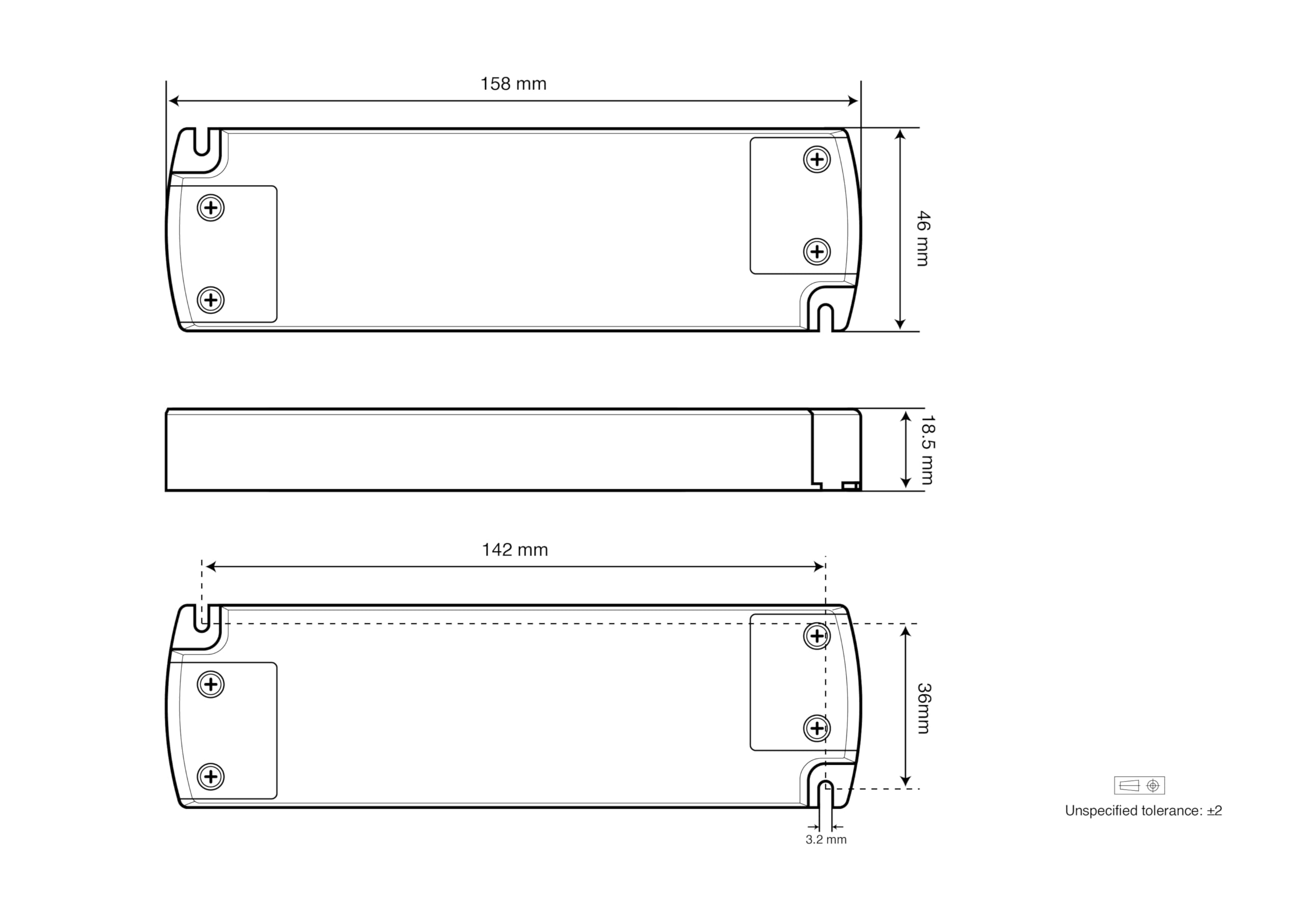

Installation protection class IP20, dimensions 158 x 46 x 19 mm (L x W x H), ambient temperature (ta) -20 - +45 °C, max. Surface temperature (tc) 85°C. Can be installed in furniture, ceiling and wall.
Safety and quality protection device overload protection, surge protection and short circuit protection. CE mark, UKCA, MM, service life > 30,000 hours.
